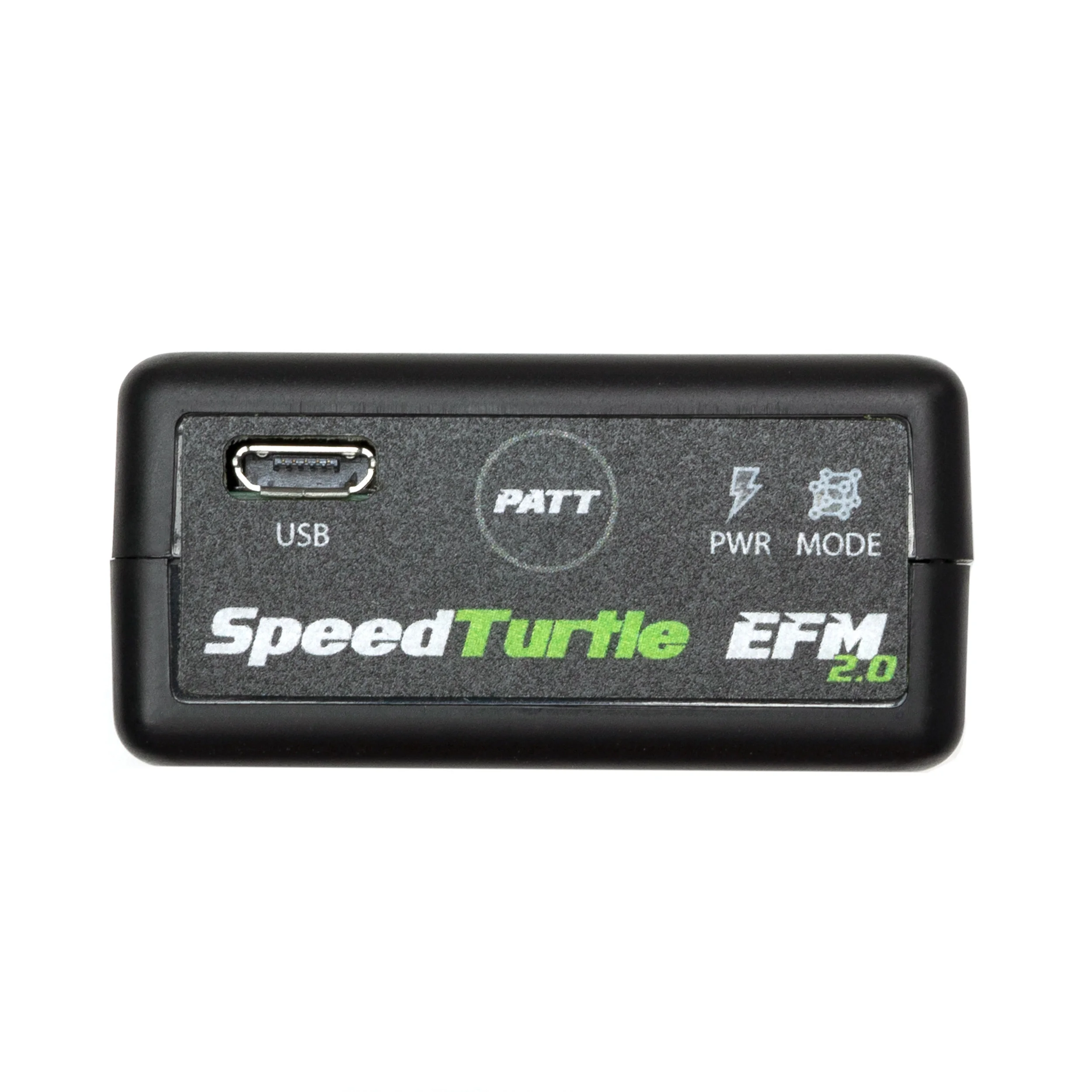

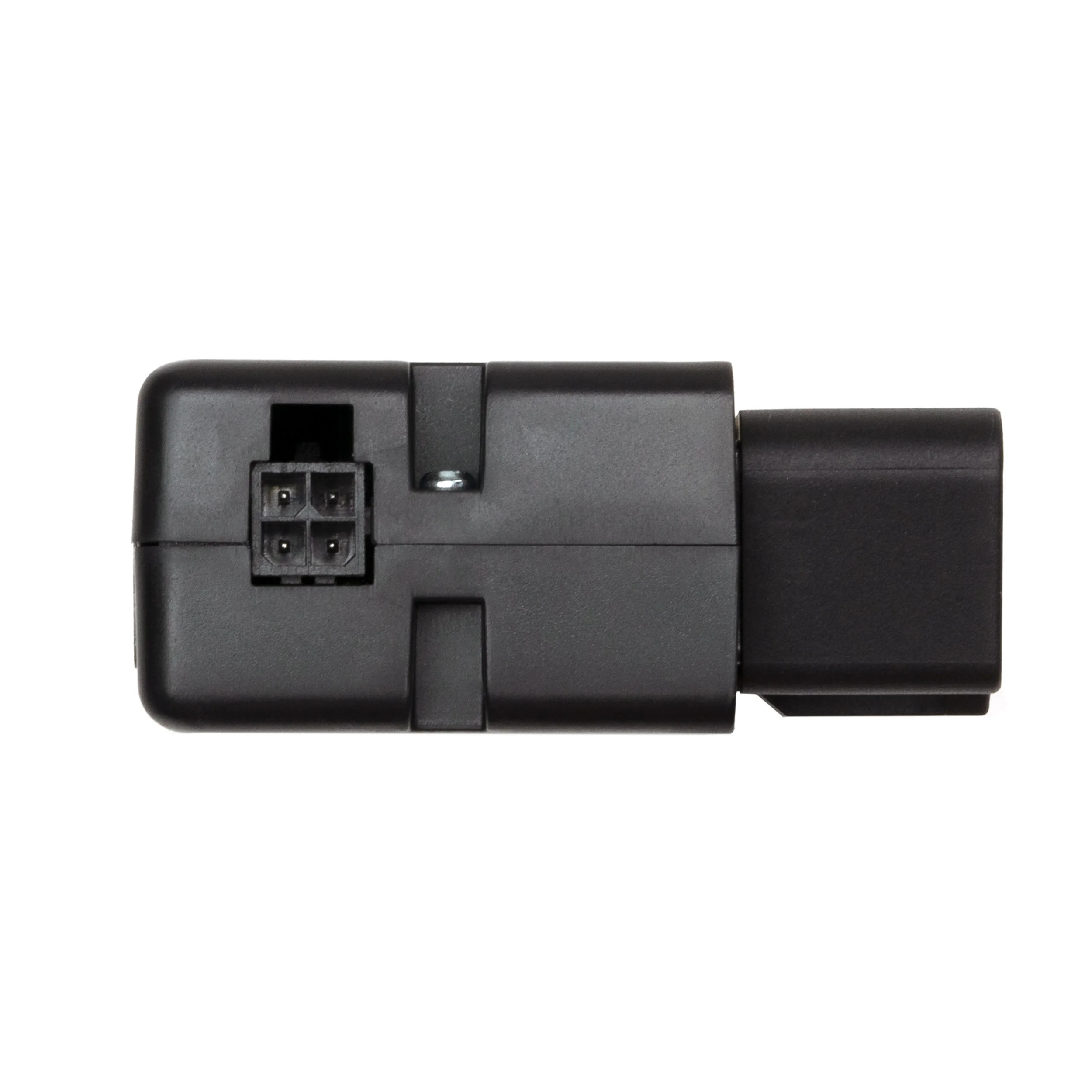

The Easy Flash Module 2.0 (EFM 2.0) provides a simple and effective way to flash the factory exterior lights of supported vehicles. The system is easily installed in minutes and is a true plug and play solution. If equipped and supported, the module will flash the following lights:

• Front Low Beams

• Front High Beams

• Front Turn Signals

• Front Fog Lamps

• Front LED Accents

• Rear Turn Signals

• Rear Stop Lamps

• Third / Center Mounted Brake Lamp

• Reverse Lamps

• Rear LED Accents

• Pickup Bed Lamp

Unlike other solutions, the EFM 2.0 does not require any cutting or reconfiguration of the vehicle’s wiring harness. This allows the module to be easily installed by anyone in minutes. The plug and play installation also allows the module to be removed and installed in another vehicle without repairing or replacing vehicle components.

The module has two switch inputs as well as an existing vehicle button (most vehicles) that can be configured to activate the module either through a long press or quick cycle.

Choose from one of the following switch interface harnesses:

Toggle Switch Harness: This harness provides a simple ON/OFF toggle switch with adhesive backing. There are two internal LEDs to the toggle switch with green indicating the switch is OFF and orange indicating the switch is ON. While this is the simplest of the two harnesses to install, it only provides one of the two possible switch inputs. The toggle switch harness is connected to Input 1 on the module.

Voltage Input Harness: This harness provides two ‘flying lead’ input wires. Each wire will accept a 5 – 17 volt input signal from a switch or light controller of your choice. The white wire corresponds to Input 1 and the green wire corresponds to Input 2.

Kit includes:

• Easy Flash Module 2.0

• Switch interface harness of your choosing

• 6' micro USB cable

• Zip ties
